Storm Swaths Generation

This notebook processes historical storm data to generate potential damage areas. It filters global storm tracks that entered the Philippine Area of Responsibility and creates swath geometries based on storm radius for those intersecting the Bicol network.

0 Setup environment

import os

import contextily as cx
import geopandas as gpd
import matplotlib.pyplot as plt
import osmnx as ox
import pandas as pd
import seaborn as sns
from shapely.geometry import Point, Polygon, box

BASE_PATH = "./data"

BOUNDARIES_FILE = os.path.join(BASE_PATH, "boundaries.gpkg")
TRANSPORT_NETWORK_FILE = os.path.join(BASE_PATH, "merged_network_simplified.graphml")
STORM_TRACKS_FILE = os.path.join(BASE_PATH, "ibtracs.ALL.list.v04r01.csv")

1 Load storm tracks from IBTrACS

gdf_boundaries = gpd.read_file(BOUNDARIES_FILE)
gdf_boundaries.head()

	town	province	geometry
0	Bacacay	Albay	MULTIPOLYGON (((123.84193 13.3341, 123.84204 1...
1	Camalig	Albay	MULTIPOLYGON (((123.6559 13.06131, 123.65536 1...
2	Daraga	Albay	MULTIPOLYGON (((123.71487 13.03995, 123.71474 ...
3	Guinobatan	Albay	MULTIPOLYGON (((123.68355 13.25321, 123.67729 ...
4	Jovellar	Albay	MULTIPOLYGON (((123.6559 13.06131, 123.65568 1...

usecols = ["SID", "SEASON", "NATURE", "LAT", "LON", "TOKYO_R30_LONG"]
df_storms = pd.read_csv(STORM_TRACKS_FILE, usecols=usecols, na_values=[" "])

for col in ["SEASON", "LAT", "LON", "TOKYO_R30_LONG"]:
    df_storms[col] = pd.to_numeric(df_storms[col], errors="coerce")

df_storms = df_storms.dropna(subset=["SID", "SEASON", "LAT", "LON"])
print(f"Loaded {df_storms['SID'].nunique()} unique storms and {len(df_storms)} total records.")

/tmp/ipykernel_24298/2726862864.py:2: DtypeWarning: Columns (1,8,9,51) have mixed types. Specify dtype option on import or set low_memory=False.
  df_storms = pd.read_csv(STORM_TRACKS_FILE, usecols=usecols, na_values=[" "])

Loaded 13460 unique storms and 718675 total records.

geometry = [Point(xy) for xy in zip(df_storms["LON"], df_storms["LAT"])]
gdf_storms = gpd.GeoDataFrame(df_storms, geometry=geometry, crs=gdf_boundaries.crs)
gdf_storms.head()

	SID	SEASON	NATURE	LAT	LON	TOKYO_R30_LONG	geometry
1	1842298N11080	1842.0	NR	10.9	80.3	NaN	POINT (80.3 10.9)
2	1842298N11080	1842.0	NR	10.9	79.8	NaN	POINT (79.8 10.9)
3	1842298N11080	1842.0	NR	10.8	79.4	NaN	POINT (79.4 10.8)
4	1842298N11080	1842.0	NR	10.8	78.9	NaN	POINT (78.9 10.8)
5	1842298N11080	1842.0	NR	10.8	78.4	NaN	POINT (78.4 10.8)

2 Filter storms along PAR

par_coords = [(120, 25), (135, 25), (135, 5), (115, 5), (115, 15), (120, 21), (120, 25)]
gdf_par = gpd.GeoDataFrame([1], geometry=[Polygon(par_coords)], crs=gdf_boundaries.crs)

_, ax = plt.subplots(figsize=(8, 8))

gdf_par.plot(ax=ax, color="none", edgecolor="firebrick", linewidth=2)

x_min, y_min, x_max, y_max = gdf_par.total_bounds
padding = 0.5
ax.set_xlim(x_min - padding, x_max + padding)
ax.set_ylim(y_min - padding, y_max + padding)

cx.add_basemap(ax, crs=gdf_boundaries.crs, source=cx.providers.CartoDB.Positron, attribution="")

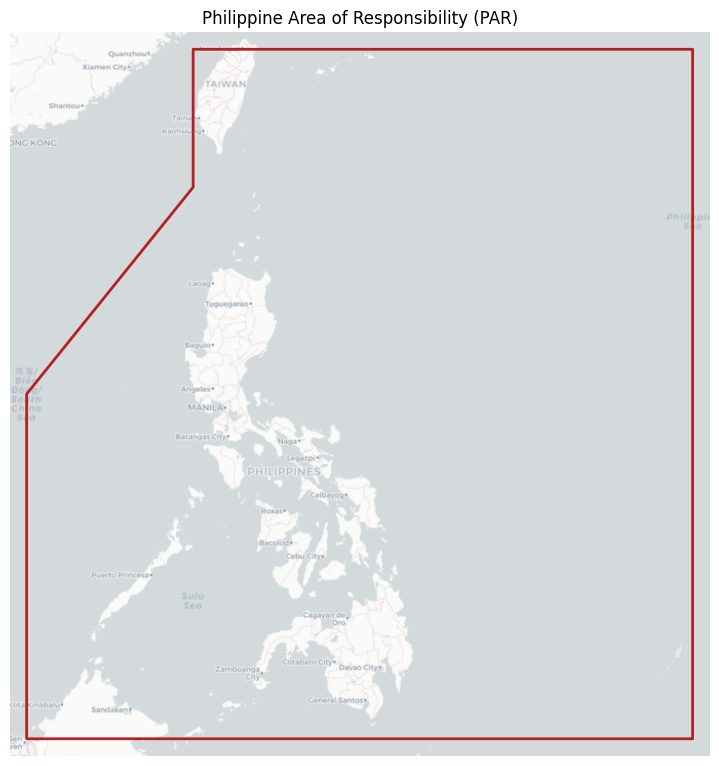

plt.title("Philippine Area of Responsibility (PAR)")
plt.tight_layout()
plt.axis("off")

filepath = os.path.join(BASE_PATH, "par_polygon.png")
plt.savefig(filepath, dpi=300, bbox_inches="tight")

plt.show()

sids_in_par = gpd.sjoin(gdf_storms, gdf_par, how="inner", predicate="within")["SID"].unique()
gdf_storms_par = gdf_storms[gdf_storms["SID"].isin(sids_in_par)]
gdf_storms_par = gdf_storms_par[gdf_storms_par["NATURE"] == "TS"]

print(f"Found {len(gdf_storms_par['SID'].unique())} tropical storms that passed through the PAR.")

Found 2662 tropical storms that passed through the PAR.

_, ax = plt.subplots(figsize=(8, 8))

gdf_par.plot(ax=ax, color="none", edgecolor="firebrick", linewidth=2, zorder=3)

x_min, y_min, x_max, y_max = gdf_par.total_bounds
padding = 0.5
ax.set_xlim(x_min - padding, x_max + padding)
ax.set_ylim(y_min - padding, y_max + padding)

cx.add_basemap(ax, crs=gdf_boundaries.crs, source=cx.providers.CartoDB.Positron, attribution="")

for storm_id in gdf_storms_par["SID"].unique():
    track = gdf_storms_par[gdf_storms_par["SID"] == storm_id]
    ax.plot(track.geometry.x, track.geometry.y, marker="o", linestyle="-", markersize=1, alpha=0.4)

min_year, max_year = int(gdf_storms_par["SEASON"].min()), int(gdf_storms_par["SEASON"].max())

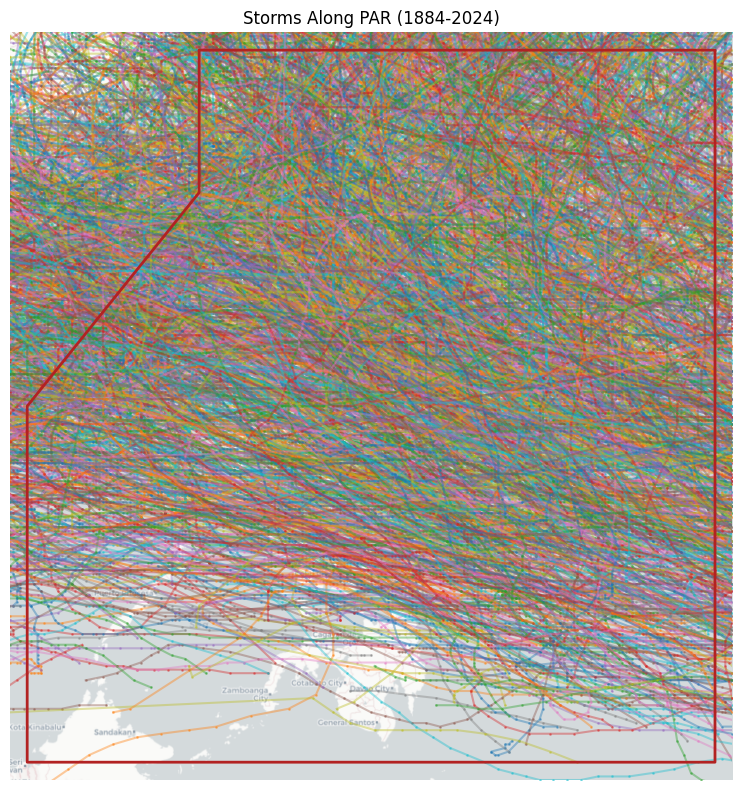

plt.title(f"Storms Along PAR ({min_year}-{max_year})")
plt.axis("off")
plt.tight_layout()

filepath = os.path.join(BASE_PATH, "storm_tracks.png")
plt.savefig(filepath, dpi=300, bbox_inches="tight")

plt.show()

3 Generate storm swaths

nmi_to_meter = 1852
gdf_storms_par["RADIUS_M"] = gdf_storms_par["TOKYO_R30_LONG"] * nmi_to_meter
gdf_storms_par["RADIUS_M"] = gdf_storms_par.groupby("SID")["RADIUS_M"].ffill().bfill()

gdf_storms_par = gdf_storms_par.to_crs("EPSG:32651")

swaths = []
for sid, storm_track in gdf_storms_par.groupby("SID"):
    storm_swath = storm_track.geometry.buffer(storm_track["RADIUS_M"]).union_all()
    swaths.append({"SID": sid, "geometry": storm_swath})

gdf_storms_par = gdf_storms_par.to_crs(gdf_boundaries.crs)

gdf_swaths = gpd.GeoDataFrame(swaths, crs="EPSG:32651")
gdf_swaths = gdf_swaths.to_crs(gdf_boundaries.crs)

gdf_swaths["geometry"] = gdf_swaths.geometry.buffer(0)  # Fix potential invalid geometries

gdf_swaths.head()

	SID	geometry
0	1884177N17124	POLYGON ((119.6299 19.04741, 119.57688 18.9352...
1	1884186N16125	POLYGON ((115.02828 17.35736, 114.99692 17.360...
2	1884191N15127	POLYGON ((119.16419 22.39553, 119.11645 22.510...
3	1884201N18129	POLYGON ((120.66847 24.68557, 120.55177 24.746...
4	1884208N13127	POLYGON ((106.48286 15.99222, 106.36064 15.999...

_, ax = plt.subplots(figsize=(8, 8))

gdf_par.plot(ax=ax, color="none", edgecolor="firebrick", linewidth=2)

x_min, y_min, x_max, y_max = gdf_par.total_bounds
padding = 0.5
ax.set_xlim(x_min - padding, x_max + padding)
ax.set_ylim(y_min - padding, y_max + padding)

cx.add_basemap(ax, crs=gdf_boundaries.crs, source=cx.providers.CartoDB.Positron)

storm_id = gdf_storms_par["SID"].unique()[-3]
swath = gdf_swaths[gdf_swaths["SID"] == storm_id]
swath.plot(ax=ax, color="red", alpha=0.5)

track = gdf_storms_par[gdf_storms_par["SID"] == storm_id]
ax.plot(track.geometry.x, track.geometry.y, marker="o", linestyle="-", markersize=1, color="white")

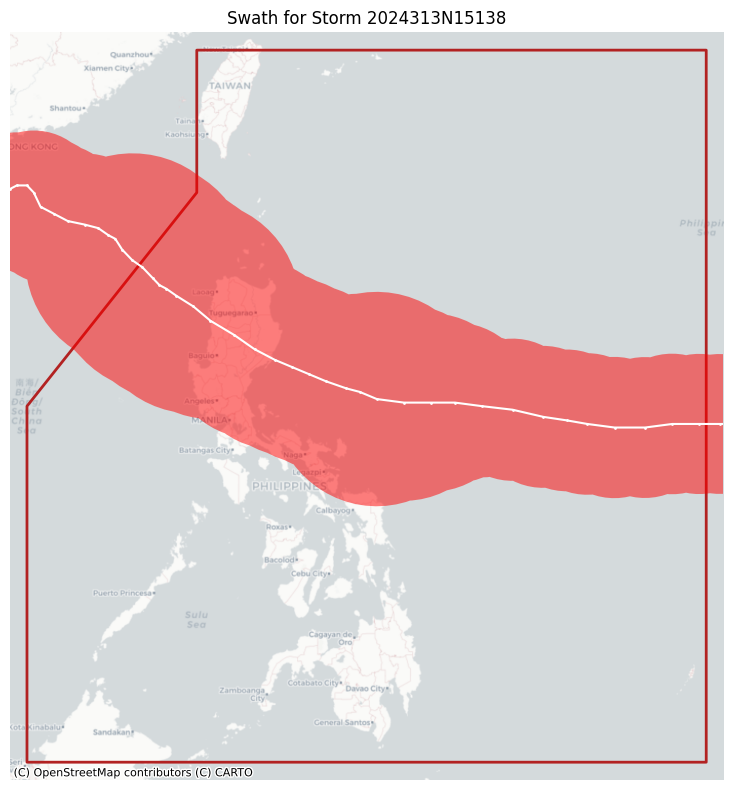

plt.title(f"Swath for Storm {storm_id}")
plt.axis("off")
plt.tight_layout()
plt.show()

del gdf_storms, swaths

4 Filter storms that intersect the transport network

graph_transport = ox.load_graphml(TRANSPORT_NETWORK_FILE)
gdf_transport = ox.graph_to_gdfs(graph_transport, nodes=False)
gdf_transport.head()

			osmid	highway	oneway	reversed	length	mode	geometry	lanes	name	ref	bridge	service	maxspeed	access	width	junction	tunnel
u	v	key
300744370	2530205870	0	245920268	tertiary	False	[False, True]	903.402532	road	LINESTRING (124.04017 11.76647, 124.03957 11.7...	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
	12758303623	0	289934621	tertiary	False	[False, True]	1174.859606	road	LINESTRING (124.0277 11.75516, 124.02796 11.75...	2	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
	2934697711	0	1185807595	tertiary	False	[False, True]	217.508112	road	LINESTRING (124.03235 11.76396, 124.03309 11.7...	2	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
300744933	2530203165	0	291446757	secondary	False	True	142.887806	road	LINESTRING (124.06395 11.76468, 124.06457 11.7...	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN
300744933	8292228841	0	291446757	secondary	False	[False, True]	365.061260	road	LINESTRING (124.0623 11.76751, 124.06249 11.76...	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN

xmin, ymin, xmax, ymax = gdf_boundaries.total_bounds
crop_box = box(xmin, ymin, xmax, ymax)
gdf_swaths = gpd.clip(gdf_swaths, crop_box)

intersecting_swath_ids = gpd.sjoin(gdf_swaths, gdf_transport, how="inner", predicate="intersects")[
    "SID"
].unique()
gdf_swaths = gdf_swaths[gdf_swaths["SID"].isin(intersecting_swath_ids)]
gdf_storms_par = gdf_storms_par[gdf_storms_par["SID"].isin(intersecting_swath_ids)]

print(f"Filtered to {len(intersecting_swath_ids)} storms that intersect the Bicol transport network.")

Filtered to 671 storms that intersect the Bicol transport network.

fig, ax = plt.subplots(figsize=(8, 8))

gdf_par.plot(ax=ax, color="none", edgecolor="firebrick", linewidth=1.5, zorder=3)
gdf_boundaries.plot(ax=ax, color="white", edgecolor="white", linewidth=0.1, zorder=4)
sns.kdeplot(
    x=gdf_storms_par.geometry.x,
    y=gdf_storms_par.geometry.y,
    ax=ax,
    cmap="Reds",
    fill=True,
    alpha=0.6,
    zorder=2,
    cbar=True,
    cbar_kws={
        "label": "Storm Track Density",
        "orientation": "horizontal",
        "pad": 0.01,
        "shrink": 0.8,
        "ticks": plt.matplotlib.ticker.MaxNLocator(5),
    },
)

x_min_par, y_min_par, x_max_par, y_max_par = gdf_par.total_bounds
padding = 0.5
ax.set_xlim(x_min_par - padding, x_max_par + padding)
ax.set_ylim(y_min_par - padding, y_max_par + padding)

cx.add_basemap(
    ax,
    crs=gdf_boundaries.crs,
    source=cx.providers.CartoDB.Positron,
    attribution="",
    zorder=1,
)

min_year, max_year = int(gdf_storms_par["SEASON"].min()), int(gdf_storms_par["SEASON"].max())

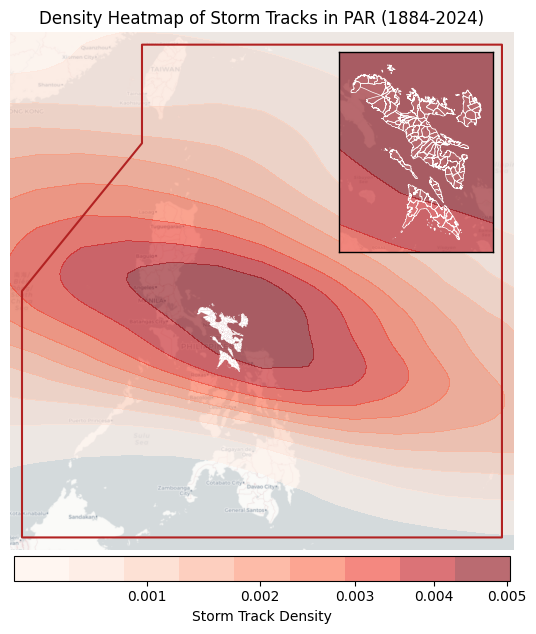

ax.set_title(f"Density Heatmap of Storm Tracks in PAR ({min_year}-{max_year})")
ax.set_axis_off()

ax_inset = fig.add_axes([0.58, 0.605, 0.25, 0.25])

gdf_boundaries.plot(ax=ax_inset, color="none", edgecolor="white", linewidth=0.5, zorder=3)
sns.kdeplot(
    x=gdf_storms_par.geometry.x,
    y=gdf_storms_par.geometry.y,
    ax=ax_inset,
    cmap="Reds",
    fill=True,
    alpha=0.6,
    zorder=2,
)

x_min_bicol, y_min_bicol, x_max_bicol, y_max_bicol = gdf_boundaries.total_bounds
inset_padding = 0.2
ax_inset.set_xlim(x_min_bicol - inset_padding, x_max_bicol + inset_padding)
ax_inset.set_ylim(y_min_bicol - inset_padding, y_max_bicol + inset_padding)

cx.add_basemap(
    ax_inset,
    crs=gdf_boundaries.crs,
    source=cx.providers.CartoDB.Positron,
    attribution="",
    zorder=1,
)
ax_inset.set_xticks([])
ax_inset.set_yticks([])
ax_inset.set_xlabel("")
ax_inset.set_ylabel("")
for spine in ax_inset.spines.values():
    spine.set_edgecolor("black")
    spine.set_linewidth(1)

filepath = os.path.join(BASE_PATH, "storm_density_heatmap.png")
plt.savefig(filepath, dpi=300, bbox_inches="tight")
plt.show()

6 Save data into file

img_dir = os.path.join(BASE_PATH, "storm_swath_images")
os.makedirs(img_dir, exist_ok=True)

for sid in gdf_swaths["SID"]:
    swath = gdf_swaths[gdf_swaths["SID"] == sid]
    track = gdf_storms_par[gdf_storms_par["SID"] == sid]

    _, ax = plt.subplots(figsize=(8, 8))

    gdf_boundaries.plot(ax=ax, color="none", edgecolor="gray", linewidth=1)
    swath.plot(ax=ax, color="red", alpha=0.5, zorder=1)
    ax.plot(
        track.geometry.x, track.geometry.y, marker="o", linestyle="-", markersize=1, color="white", zorder=2
    )

    x_min, y_min, x_max, y_max = gdf_boundaries.total_bounds
    padding = 0
    ax.set_xlim(x_min - padding, x_max + padding)
    ax.set_ylim(y_min - padding, y_max + padding)

    cx.add_basemap(ax, crs=gdf_swaths.crs, source=cx.providers.CartoDB.Positron, attribution="")

    plt.title(f"Storm Swath: {sid}")
    plt.axis("off")
    plt.tight_layout()

    out_path = os.path.join(img_dir, f"{sid}.png")
    plt.savefig(out_path, dpi=300, bbox_inches="tight")
    plt.close()

dirpath = os.path.join(BASE_PATH, "storm_swath_geometries")
os.makedirs(dirpath, exist_ok=True)

for index, row in gdf_swaths.iterrows():
    sid = row["SID"]
    gdf_single_swath = gpd.GeoDataFrame([{"SID": sid, "geometry": row["geometry"]}], crs=gdf_swaths.crs)
    filepath = os.path.join(dirpath, f"{sid}.gpkg")
    gdf_single_swath.to_file(filepath, driver="GPKG")
